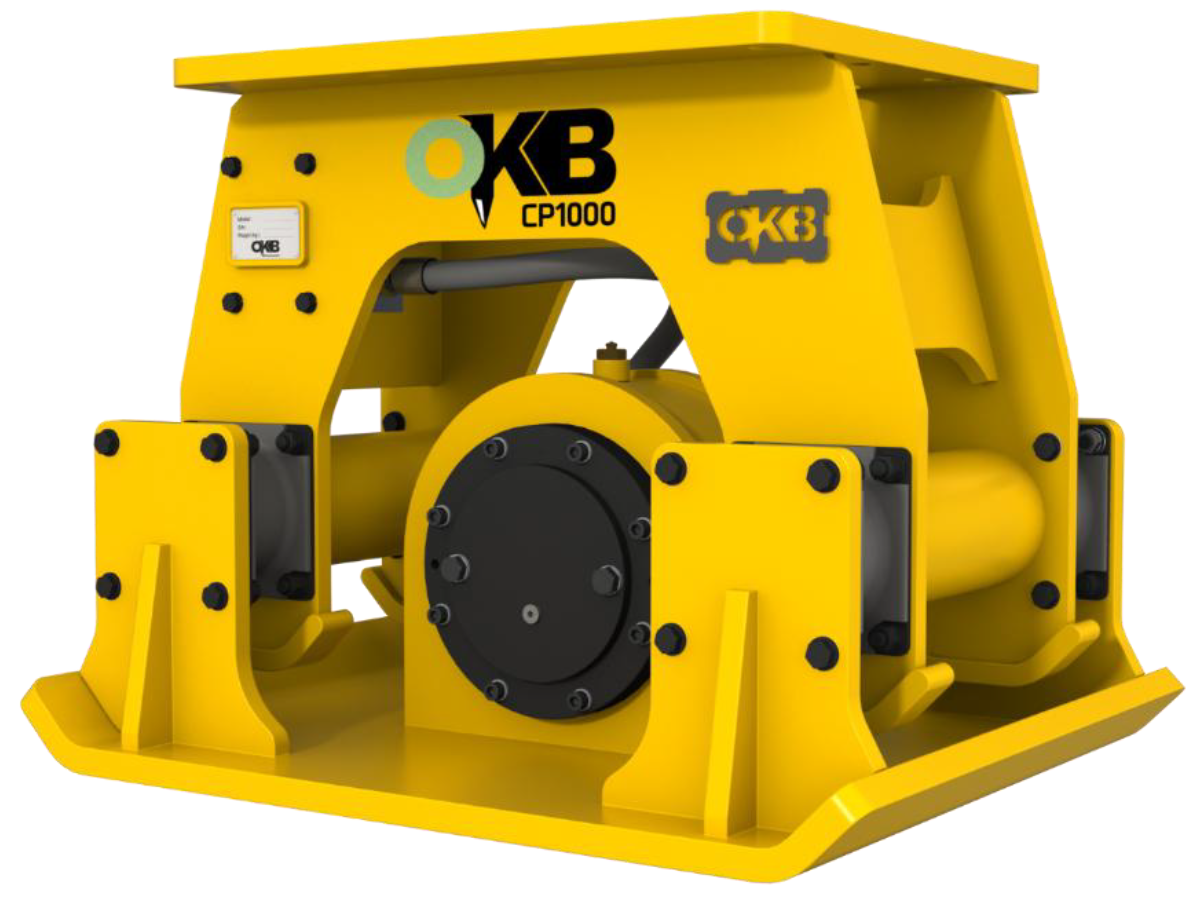

OKB HYDRAULIC COMPACTORS
POWER. DURABILITY. STRENGTH.
OKB hydraulic compactors offer an effective and reliable tool for compacting material in trenches and on embankments as well as levelling ground.
- Integrated relief valve prevents overloading.
- Shock mounts improve the force distribution so reducing the strain on the carrier.
- Oil splash lubrication removes the need for manual lubrication.
- No drain line required.
- 12 month warranty as standard
APPLICATIONS
- Utilities and road maintenance.
- Trenching and building embankments.
- Post driving, sheet piling and other form works.
| Model | Unit | CP200 | CP350 | CP1000 | CP4000 |
|---|---|---|---|---|---|
| Carrier weight | t | 3 – 7 | 5 – 15 | 12 – 25 | 20 – 45 |
| Operating weight | Kg | 210 | 353 | 794 | 1282 |
| Base plate (A x B) | mm | 700 x 410 | 850 x 610 | 960 x 740 | 1253 x 860 |
| Height without bracket (C) | mm | 506 | 558 | 696 | 803 |
| Vibration Frequency | vpm | 2100 | 2100 | 2100 | 2100 |
| Oil flow rate | l/min | 42 – 80 | 78 – 125 | 100 – 230 | 147 – 277 |
| Max operating pressure | bar | 172 | 152 | 172 | 172 |
