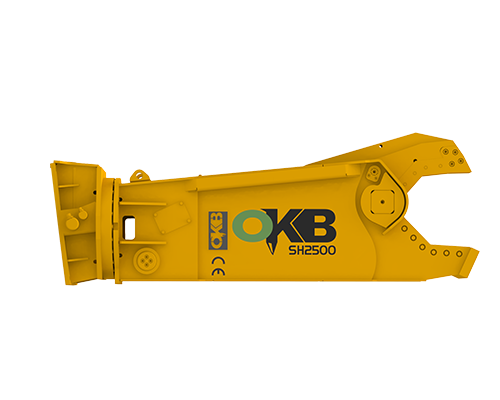

OKB SHEARS
POWER. DURABILITY. STRENGTH.
OKB demolition shears are heavy duty excavator attachments designed for modern industrial demolition projects and for professionals in the recycling of scrap and ferrous materials.
- Purpose built for steel cutting; they are an efficient attachment for demolishing steel structures.
- Weight range from 5t – 55t.
- Hydraulic Rotation.
APPLICATIONS
- Construction Demolition: Efficiently cut through steel beams and concrete structures for rapid and safe building dismantling.

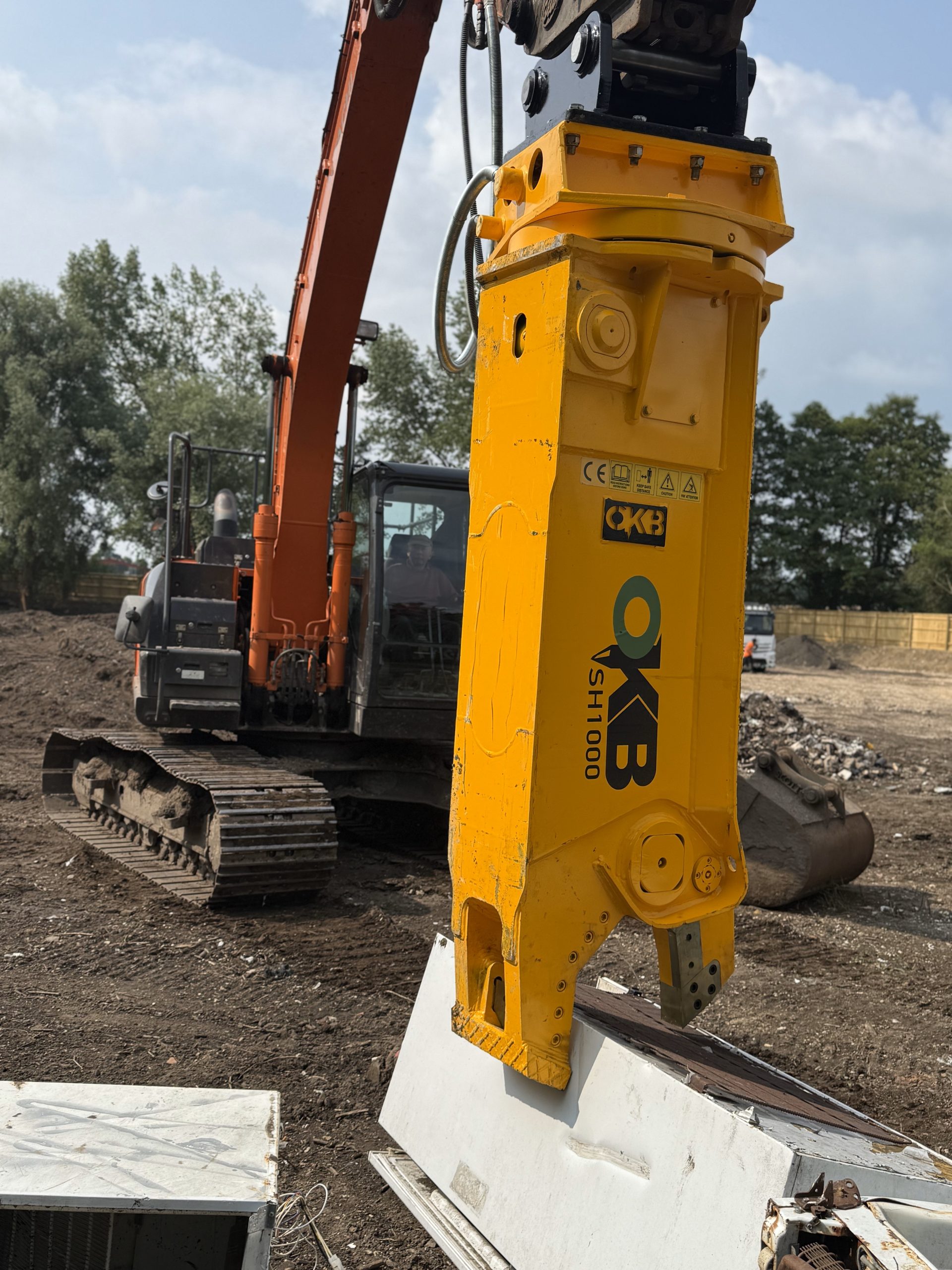

- Recycling: Process and size scrap metal for recycling, including car dismantling and scrap yard operations.
| Model | Unit | SH350 | SH1000 | SH2500 | SH4000 | SH4500 |
|---|---|---|---|---|---|---|
| Carrier | t | 5-10 | 12-18 | 18-26 | 28-40 | 40-55 |
| Weight | Kg | 530 | 1250 | 2100 | 3300 | 4700 |
| Max Operating Pressure | Bar | 220 | 350 | 350 | 350 | 350 |
| Oil Flow | l/min | 60-100 | 90-150 | 150-200 | 200-250 | 250-380 |

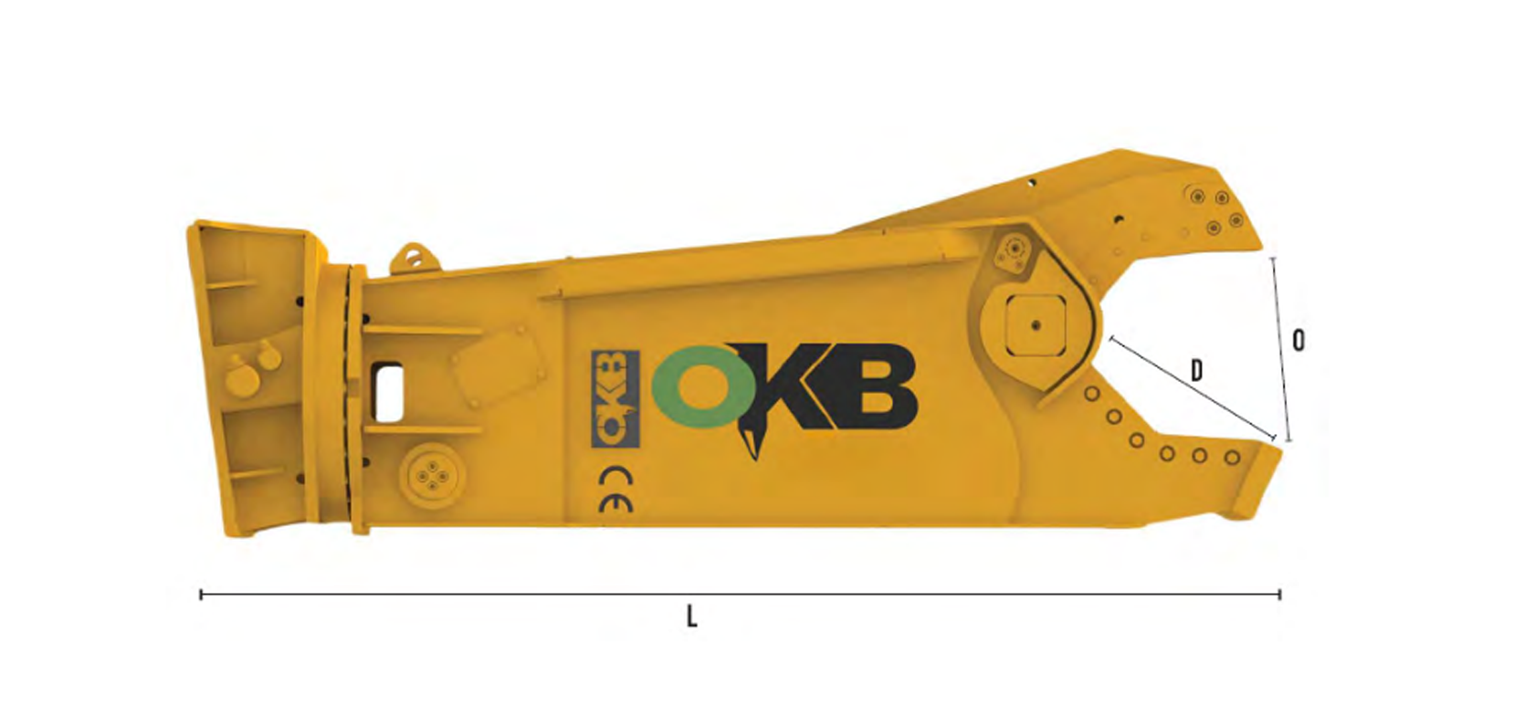

| Max Jaw Opening (0) | mm | 350 | 450 | 510 | 630 | 760 |
| 360° rotation | Bar | 140 | 160 | 160 | 160 | 160 |
| l/min | 20-25 | 30-35 | 30-35 | 30-35 | 30-35 | |
| Force at upper tips | kN | 390 | 550 | 800 | 1175 | 1520 |
| Force in the middle | kN | 620 | 950 | 1480 | 2250 | 2800 |
| Jaws Depth (D) | mm | 360 | 420 | 540 | 630 | 760 |
| Total Length (L) | mm | 1920 | 2190 | 2750 | 3180 | 3600 |
Cutting Profiles
| Shape | Rod | Tube | IPE | HEA | HEB | Plate | L profile | “Rail vignola” |
|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model | mm | mm | mm | mm | mm | mm | mm | n.d |
| SH350 | 50 | n.d | n.d | 100 | n.d | 8 | 120*10 | n.d |
| SH1000 | 55 | n.d | 200 | 120 | n.d | 10 | 120*10 | n.d |
| SH2500 | 60 | n.d | 270 | 140 | n.d | 12 | 120*12 | 36 |
| SH4000 | 70 | n.d | 300 | 200 | 450 | 18 | n.d | n.d |
| SH4500 | 90 | n.d | 450 | 320 | n.d | 20 | 200*24 | 36 |
